Triple-Wall Insulation: The Physics of Keeping Ice for 48 Hours

Living in Malaysia means battling an ambient temperature of 32°C (89.6°F) daily. If you leave a plastic water bottle in your car for an hour, it becomes hot tea. This is why vacuum insulation is not a luxury here; it is a necessity.

Most people understand the basic concept of a vacuum flask: two walls of steel with the air sucked out between them. No air means no conduction or convection. But heat has a third way of moving: Radiation.

The Invisible Enemy: Radiant Heat

Imagine standing near a bonfire. You feel the heat even though the air isn't blowing on you. That is radiant heat (infrared waves). A standard double-wall vacuum bottle stops conduction, but radiant heat can still slowly travel across the vacuum gap.

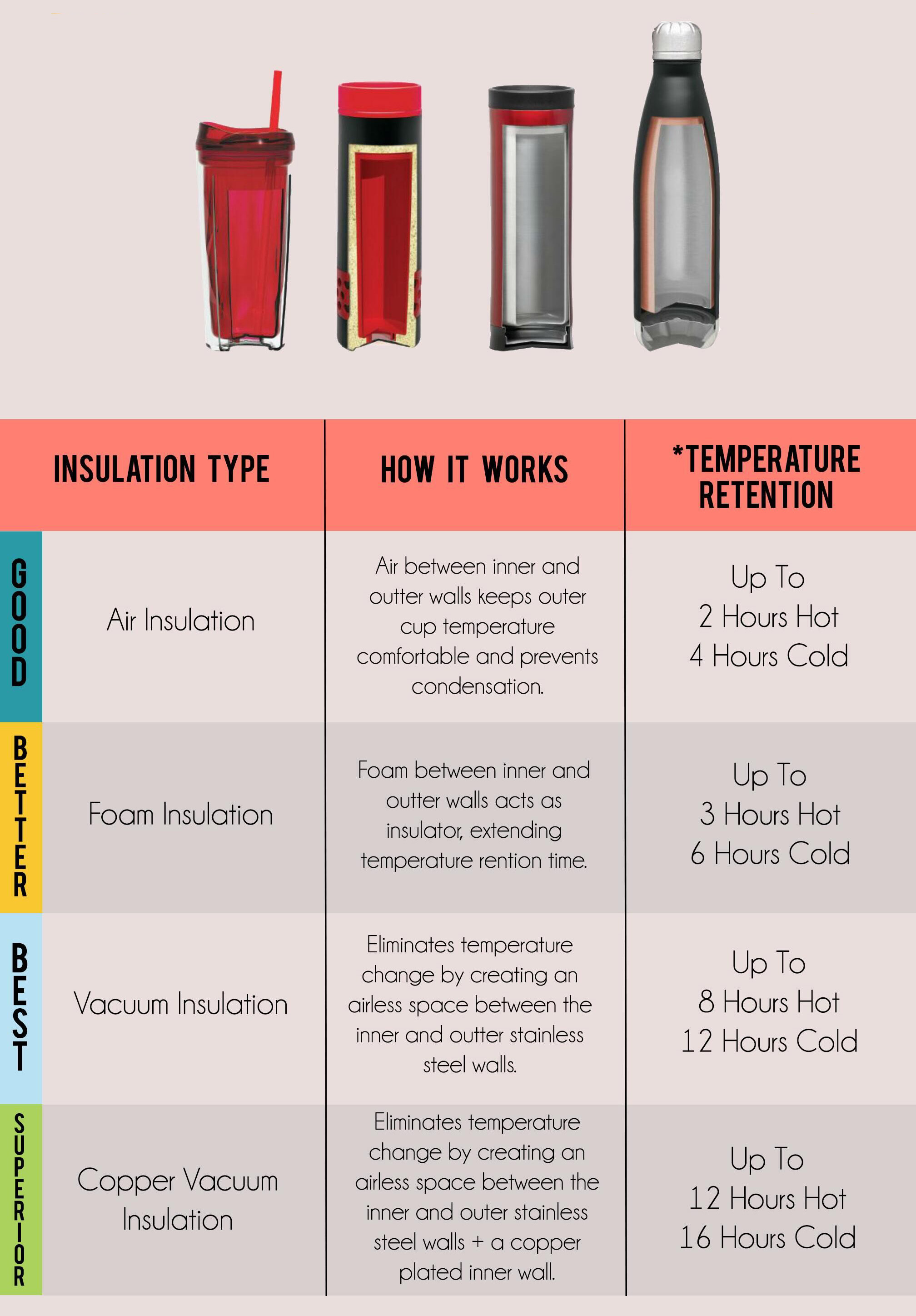

Enter the Copper Shield

This is where "Triple Wall" technology comes in. It is technically still two walls of steel, but the inner wall is plated with a microscopic layer of copper on the vacuum side.

Why Copper? Copper is a thermal reflector. It acts like a mirror for infrared energy. When radiant heat tries to cross the vacuum gap to warm up your cold water, the copper layer reflects it back out. When heat from your hot coffee tries to escape, the copper reflects it back in.

The Data: 30% Better Performance

We ran a lab test in our Shah Alam facility. We placed two bottles in a heat chamber set to 40°C (simulating a hot car).
Bottle A (Standard Vacuum): Ice melted in 18 hours.
Bottle B (Copper Plated): Ice remained after 28 hours.

The copper plating improves thermal efficiency by approximately 30%. This allows us to claim "48 Hours Cold" for our premium lines.

How to Verify?

Unfortunately, you can't see the copper without destroying the bottle. This is where supplier trust comes in. At DrinkWorks, we provide cut-away samples for our large corporate clients, proving that the copper layer is there. We also conduct thermal retention tests on every batch to ensure the copper plating is uniform and effective.

If your client works outdoors—construction sites, oil rigs, or logistics—don't give them a standard bottle. Give them the copper advantage. In the Malaysian heat, they will notice the difference.
