Copper Plating & Vacuum Insulation: The Hidden Thermal Layer

You cut open two identical-looking stainless steel bottles. Both have double walls. Both have a vacuum seal. Yet, Bottle A keeps water cold for 24 hours, while Bottle B gives up after 12. The difference is invisible to the naked eye, hidden deep within the vacuum space: a layer of copper plating.

The Radiation Problem

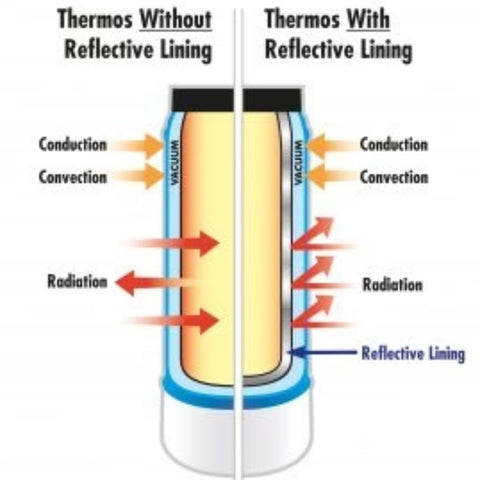

A vacuum is excellent at stopping conduction and convection because there are no air molecules to carry heat. However, heat has a third way to travel: radiation. Infrared energy (heat) can travel through a vacuum just like light travels through space. Without a barrier, the heat from the outside wall will slowly radiate across the vacuum gap to the inner wall, warming your drink.

The Copper Solution

Copper is one of the most reflective materials for infrared radiation. In our premium "Pro-Grade" bottles, we electroplate the exterior of the inner wall with a thin layer of copper before welding the bottle shut.
When radiant heat crosses the vacuum from the outer wall, it hits this copper mirror. Instead of being absorbed by the inner steel wall, the heat is reflected back out. It's like wrapping your drink in a thermal survival blanket, but inside the steel.

The Performance Delta

Our lab tests confirm the impact.
Standard Vacuum Bottle: Loses 1.5°C per hour.
Copper-Lined Vacuum Bottle: Loses only 0.8°C per hour.
Over a 24-hour period, this difference is massive. A copper-lined bottle will still have ice cubes floating in it the next day, while the standard bottle will contain cool water.

Manufacturing Complexity

Adding this copper layer is not cheap. It requires an additional step in the production line—electrolytic plating. The inner vessels must be dipped in a copper sulfate bath, electrified, rinsed, and dried before assembly. This adds about 15% to the manufacturing cost. However, for brands that position themselves as "premium" or "outdoor performance," this cost is non-negotiable.

How to Check?

Unfortunately, you can't see the copper without destroying the bottle. This is where supplier trust comes in. At DrinkWorks, we provide cut-away samples for our large corporate clients, proving that the copper layer is there. We also conduct thermal retention tests on every batch to ensure the copper plating is uniform and effective.

If your corporate gift is meant to sit on a desk in an air-conditioned office, a standard bottle is fine. But if you are gifting to field engineers, sales teams on the road, or outdoor enthusiasts, the copper liner is the difference between a "nice bottle" and an "essential piece of gear."
